M4-M40

Product Description

Screw type waterproof and breathable valve, commonly known as respirator, breathable screw, etc.

This product uses our company and partners to jointly develop EPTFE membrane material, with the

 outer shell PA66+20% fiberglass material injection molded into one piece, and the outer shell is

high-temperature resistant silicone O-ring. The membrane material and the shell are combined

through a tight packaging process, which has the characteristics of stable performance, simple

installation, long use time, and high waterproof and breathable performance.

Integrated molding achieves good waterproof performance

Quickly restore breathability by leaving the liquid surface

The interference fit between the lid and the body solves the problem of lid detachment.

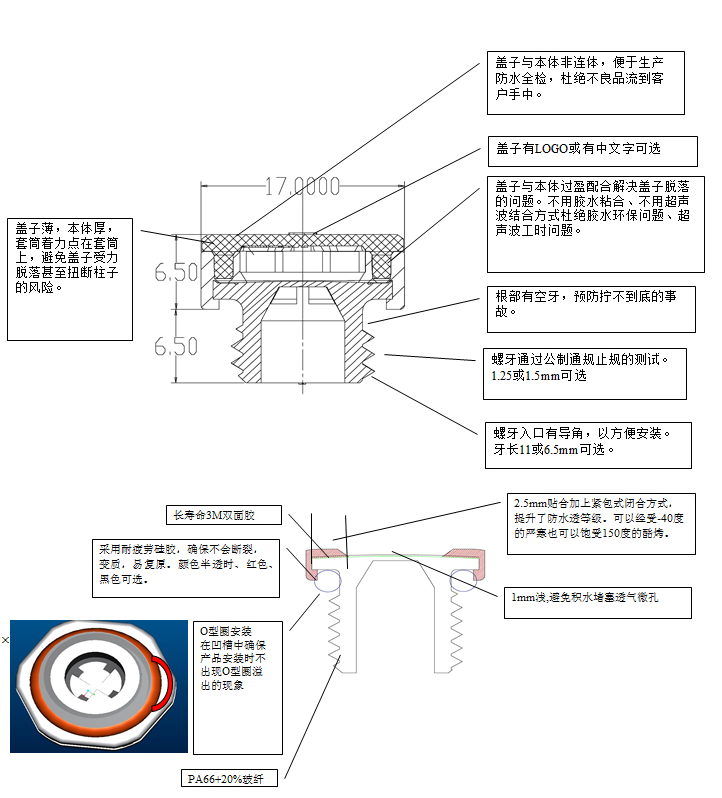

The cover is thin, the body is thick, and the sleeve is focused on the sleeve to avoid the risk of the

cover falling off or even twisting the column under force. The groove design ensures that the O-ring will not overflow

Main benefits:

·Dust and waterproof performance up to IP68

·Maintain air pressure balance, avoid expansion gas attacking weak links, prevent cracking and deformation, and extend the service life of the shell

·Maintain humidity balance, discharge moisture, alleviate fogging and condensation, protect internal components, and extend the lifespan of shell components

·Prevent electronic and inductive product failures caused by salt and water corrosion, and protect sensitive electronic and inductive products

·Simplify shell sealing design, reduce research and development costs, and reduce research and development difficulty

·Reduce production costs and reduce production difficulty

·Reduce maintenance and repair costs

·Waterproof, dustproof, and hydrophobic

·No dust accumulation, no water accumulation, no dust cake formation, maintaining smooth ventilation

·UV resistant and long-lasting

·Wide operating temperature range

·Easy installation and maintenance

·At the same time, high-quality flat pads have a long lifespan, do not break, and are resistant to fatigue.

·Safe, environmentally friendly, non-toxic, and without sharp edges

·Significantly reduce the after-sales failure rate, lower project costs, and solve the worries of enterprises.

1. Installation location

The position of the installation hole should be prioritized to be perpendicular to the ground on the side, with the waterproof

 and breathable valve installed horizontally. Next, choose the bottom installation, and avoid positions that are easily covered

by rainwater, dust, and other objects. To prevent the waterproof and breathable membrane micropores from being blocked by coverings.

2. Design of installation holes

The Le De M12 * 1.5 series products use a 14 * 9 * 2.5 O-ring with a hardness of 50 and a groove design to prevent O-ring overflow.

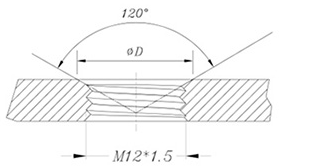

Suggest a typical installation hole with a chamfer of 120 degrees and a diameter of 14.2mm. The installation torque is suitable from 5.0 to 6.0 kgf.cm.

Lede Company's waterproof and breathable valve groove design facilitates users to better chamfer threaded holes within the specified torque range:

90 degree chamfer, applicable from 12.0 to 14.6mm.

A 120 degree chamfer can be applied from 12.0 to 15.0mm.

Precautions before installation

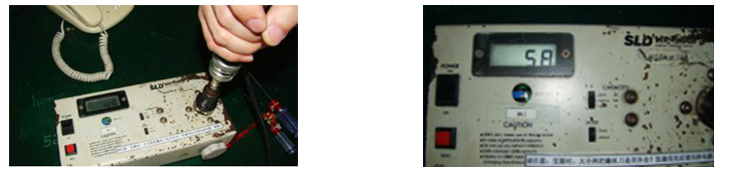

Before installation, it is necessary to prepare a suitable sleeve or straight screwdriver for the electric screwdriver, and adjust the torque to 5.2 to 5.8 Kgf.cm.

2. Confirm whether the upper cover is properly covered and whether it will loosen. If it does, press it tightly to avoid falling off.

3. Personnel are prohibited from opening the top cover and scraping the waterproof and breathable film with their fingers.

4. Confirm if the O-ring is damaged.

Product maintenance

To avoid external conditions, a protective cover has been added to the surface of the Lede breathable valve,

which can minimize the impact of external conditions. However, in extremely harsh outdoor environment, in

order to prevent the vent valve from being blocked by dust and silt, the facial mask body of the vent valve

can be maintained as necessary according to different service conditions

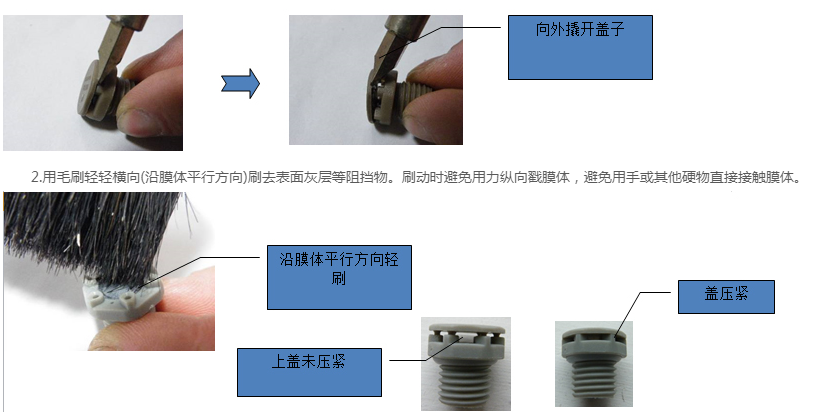

Maintenance method:

1. Use a flat screwdriver to pry off the upper cover outward. When prying off, avoid using too much force

 to damage the cover and waterproof breathable film.

3. Close the upper cover and press it tightly.

Storage requirements

1. Avoid direct sunlight, approach heat sources, and dust;

2. Storage time shall not exceed 1 year;

3. Place excess products in their original packaging during production;

4. When changing packaging, attention should be paid to protecting the product's teeth.
